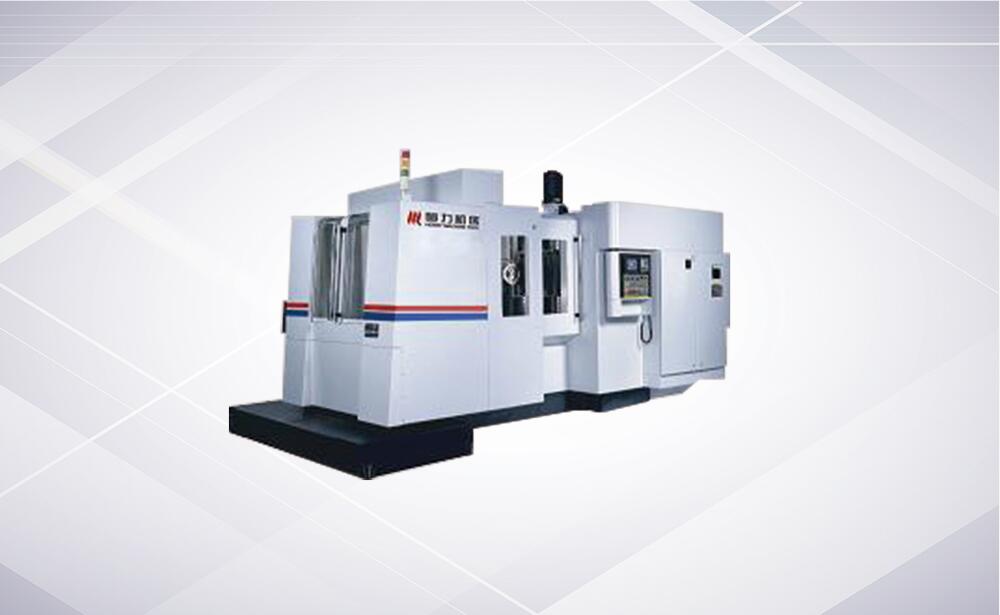

Strong, compact body
The main structure castings are made of high quality Meehanite cast iron, with stable structure and permanent quality assurance
Continuously shorten the acceleration/deceleration time of the spindle and change the tool time, increase the feed speed, reduce the auxiliary time, and improve the cutting efficiency
| Specifications | HMC63T series | HMC-80T series | ||||
| Project name | HMC63-T/1 | HMC63-T/2 | HMC80-T/1 | HMC80-T/2 | ||
| (single table) | (Exchange Workbench) | (single table) | (Exchange Workbench) | |||
| Bench | Working desk size | 630x700mm | 630x700mm | 800x800mm | 800x800mm | |
| Table indexing | 1°（0.001°） | 1°（0.001°） | 1°（0.001°） | 1°（0.001°） | ||
| Workbench maximum load | 1200kg | 1200kg | 1500kg | 1500kg | ||
| Maximum workpiece rotation diameter | φ1000mm | φ1000mm | φ1600mm | φ1600mm | ||
| Travel | Positive T layout | Workbench rotates left and right (X direction) | 1050mm | 1050mm | 1300mm | 1300mm |
| Spindle head up and down (Y direction) | 810mm | 810mm | 1000mm | 1000mm | ||
| Columns move back and forth (Z direction) | 900mm | 900mm | 1000mm | 1000mm | ||
| Spindle (Taiwan) [Synchronization Belt 1:1 Drive] | BT50 ring spray | Spindle bearing inner diameter | 100mm | 100mm | 100mm | 100mm |
| Maximum speed | 6000rpm | 6000rpm | 6000rpm | 6000rpm | ||
| Spindle centerline to table distance | 120~930mm | 0~810mm | 120~1120mm | 0~1000mm | ||
| Distance from the main bearing surface to the center of the table | 130~1030mm | 130~1030mm | 200~1200mm | 200~1200mm | ||
| Fast moving speed | X direction, Y direction, Z direction | 36m/min | 36m/min | 36m/min | 36m/min | |
| B axis | 10r/min | 10r/min | 10r/min | 10r/min | ||
| Magazine | Tool selection method | random | random | random | random | |
| Pull type | Type MAS 2 | Type MAS 2 | Type MAS 2 | Type MAS 2 | ||
| Number of tools | 40[60] | 40[60] | 40[60] | 40[60] | ||
| Maximum tool diameter (adjacent) | φ115mm | φ115mm | φ115mm | φ115mm | ||
| Maximum tool diameter (lead empty knife) | φ250mm | φ250mm | φ250mm | φ250mm | ||
| Maximum tool length | 450mm | 450mm | 450mm | 450mm | ||
| Maximum tool weight | 25kg | 25kg | 25kg | 25kg | ||
| Tool change time (tool to knife) varies with tool weight | 2.5s | 2.5s | 2.5s | 2.5s | ||
| Tool change time (cut to cut) varies with tool weight | 6s | 6s | 6s | 6s | ||
| APC | Pallet exchange | 2-sided rotation | 2-sided rotation | |||
| Pallet exchange time | 15s | 15s | ||||
| Positioning accuracy (GB) | X direction, Y direction, Z direction | 0.01mm(full course) | 0.01mm(full course) | 0.012mm(full course) | 0.012mm(full course) | |
| Repeatability | X direction, Y direction, Z direction | 0.006mm(full course) | 0.006mm(full course) | 0.008mm(full course) | 0.008mm(full course) | |
| CNC system | FANUC system，SIEMENS system，Mitsubishi system | |||||
| Standard configuration | Optional configuration |
| Spindle speed 6000RPM | Spindle speed 8000RPM |
| Spindle airtight system | Three-axis grating |
| Spindle roller track | Fourth axis scale |
| Worktable 1° graduation | Spindle outside blowing system |
| Cutting fluid ring spray | Spindle Center Outlet System |
| Scraper drainage system | FANUC 31IMD |

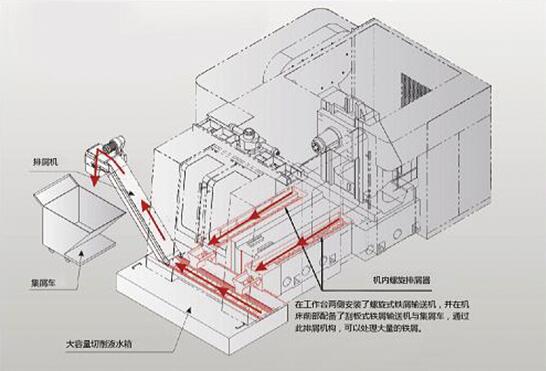

| Chip collection trolley | ZF gearbox |
| nternal screw chip removal system | Spindle oil cooler |
| Internal oil and water separation system | Triaxial hollow cooling system |
| Roof punch system | |
| Water separator | |
| M30 automatic disconnection system | |
| working lamp | |
| Warning Light | |
| Electric box heat exchanger | |
| FANUC OIMD |
