组合机床

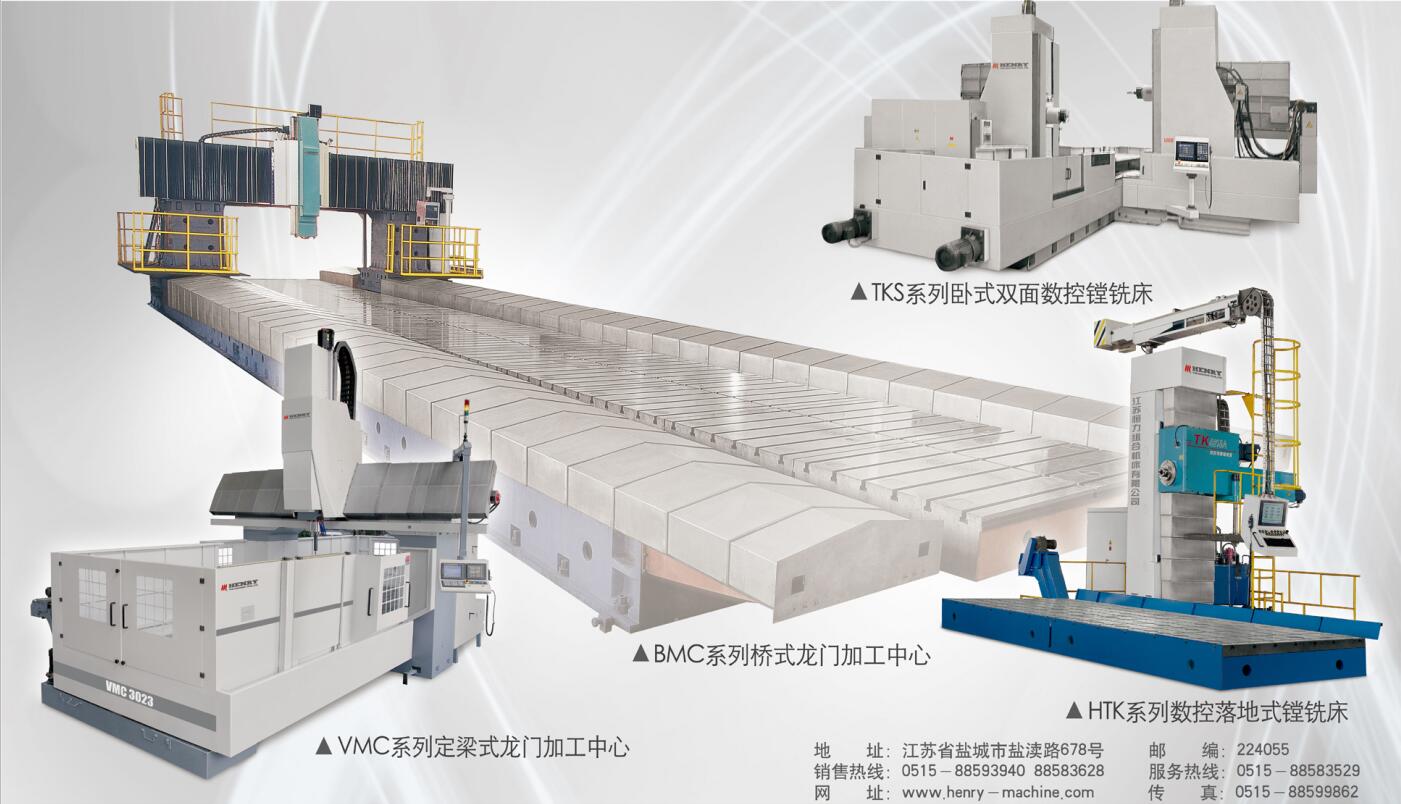

1. The machine adopts a longmen frame structure, which has good rigidity and precision retention, and it is a machining center when equipped with a magazine.
2. The X, Y axis uses plastic guide rails with low wear and high loads to ensure the long-term use and accuracy of the machine tool.
3. The Y-axis design is a 30-degree inclined guide rail with excellent mechanical properties, which can greatly improve cutting accuracy and rigidity.
4. The Z-axis is designed to be applied to a rectangular guide rail. The feed uses double-cylinder counterweight balance to ensure high-precision feed characteristics.
5. The X axis adopts ZF reducer transmission, and the Y and Z axes adopt direct drive to ensure high positioning accuracy.
6. The boring and milling head adopts imported high-speed spindle and double-speed ZF reducer drive to meet the requirements of heavy cutting and high-speed machining.
7. The use of regular quantitative automatic lubrication device, small wear, suitable for long-term operation requirements.
8. The large-capacity A.T.C tool magazine is installed on the left side column, with compact structure and reliable performance.
9. The machine can be configured universal milling head, 4-90 degree right angle milling head, 90 degree deep boring milling head and other accessories milling head, can increase a variety of functions.
