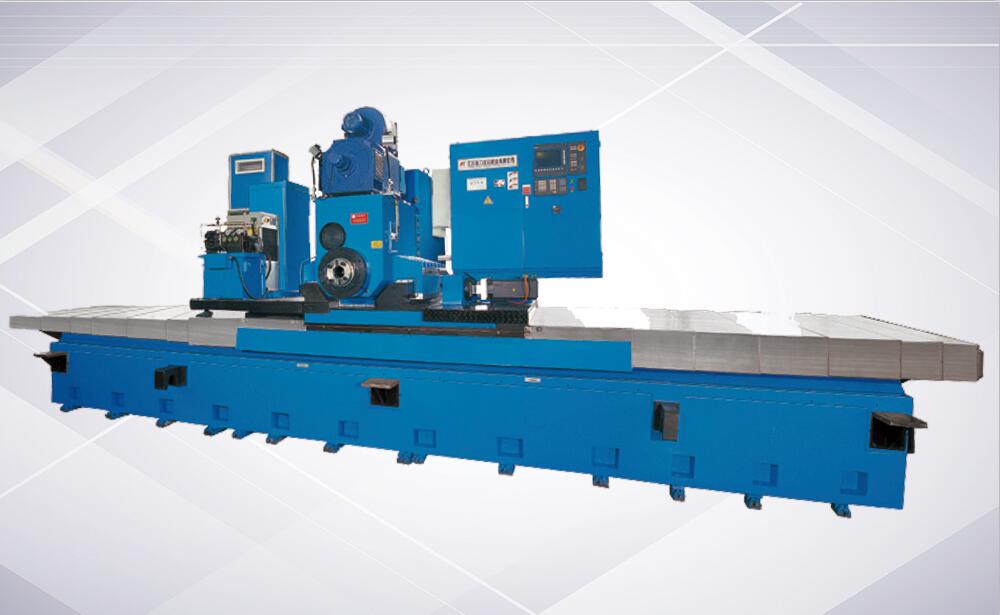

ZH1X Series Milling Combination Machine

ZH1X series milling combination machine is a new series of combined milling machine produced by our company. The worktable adopts 1XG series and the milling head adopts 1TX series. Its main drive is helical gear transmission, smooth transmission, feed screw transmission with ball screw drive. The main features of this machine are its high rigidity, high precision and high efficiency. With a suitable milling cutter, the cutter can reach 800mm per minute. Maximum cutting depth 8-10mm, high efficiency machining, can be used for large-surface milling of castings, steel parts and non-ferrous metal parts. It is generally used in some oil machine, tractor and other industry box parts production lines, can adapt to the annual output of 10 - 200,000 units of production capacity requirements.

This series of machine tools is divided into three precision grades: G grade (high precision grade 0.03/600, Ra1.6-3.2um), M grade and P grade (ordinary grade, used for rough milling). High-precision machine tools can be used to mill grinding technology, has been listed as a substitute for imported products.

ZH1X series combination milling machine is the leading product of our company for many years. It has formed series and professional production. The product grade has been controlled from simple PLC to servo numerical control. At present, the company has an annual output of 300 sets of milling machine production capacity, becoming the main production base for domestic surface milling machine tools. Some products have entered the international market.

产品介绍

Technical specifications

Main parameter		unittype	ZH1X100W263	ZH1X80 50	ZH1X63 50	ZH1X63 40	ZH1X50 40	ZH1X50 32	ZH1X40 32	ZH1X40 25
Table Working Surface	I	mm	2000*1000	2000*800	1600*630		1250*500		1000*400
	Ⅱ		2500*1000	2500*800	2000*630		2000*500		1600*400
Max.Travel	I	mm	2000		1600		1250		1000
	Ⅱ		2500		2000				1600
T-grorve(No.XWXDistance)		mm	522225	522175	522135		518105		51880
Main Shaft Range			No.60(Ф221.44)			No.50(Ф128.57)				No.40(Ф88.887)
Main Quil Dia.		mm	300	265		220		190		160
Main Quil Travel		mm	100			80				63
Disc Dia.		mm	250-630	200-500		160-400		125-320		100-250
Milling Head Adjust on Machine(post)		mm	250	225（400）		200（300）		150（300）
Spindle Speed Step			2Group 8 Step
Spindle Speed Range	Low speed	rpm	40-160	50-250		63-320		80-400
	High speed		80-320	80-400		100-500		125-630
Motor Power		Kw	22,30,37	15,18.5,22		7.5,11		3,4,5.5		2.2,3
Working Feed Step			2Group 8 Step
Working Feed Range	Low speed	mm/min	100-500				480-240（special orders），95-450 *
	High speed		320-1600				190-960
Rapid Feedrate of Table		m/min	5.95 or 9.3				6.6
Max.Feed Force		KN	25				20
Motor Power		Kw	4（3）				2.2 （1.5）
Weight	I	T	23	16.5	13.6	12.5	9.3	8.7	6.5	5.8
	Ⅱ		27	18.5	14.3	13.2	10.5	9.8	8.5	7.8

Contact size

Type Size	ZH1X100W263	ZH1X80 50	ZH1X6350	ZH1X6340	ZH1X5040	ZH1X5032	ZH1X4032	ZH1X4025
B	1000	800	630		500		400
B1	1250	1000	800		700		600
B2	1260	1060		865		685		550
B3	700-1200	670-1000	380-800	460-800	380-700		300-600	350-600
B4	1685	1420		1150		918		768
B5	-	1000		800		700		600
H1	500 or 630	400 or 500		300 or 400		300		250
H2	-	500-670		400-540		300-470		270-420
H3	-	2800		2400		2150		2060
L	I4100		I3300		I2600		I2100
	Ⅱ5100		Ⅱ4100		Ⅱ4100		Ⅱ3300
L1	I2000		I1600		I1250		I1000
	Ⅱ2500		Ⅱ2000		Ⅱ2000		Ⅱ1600
